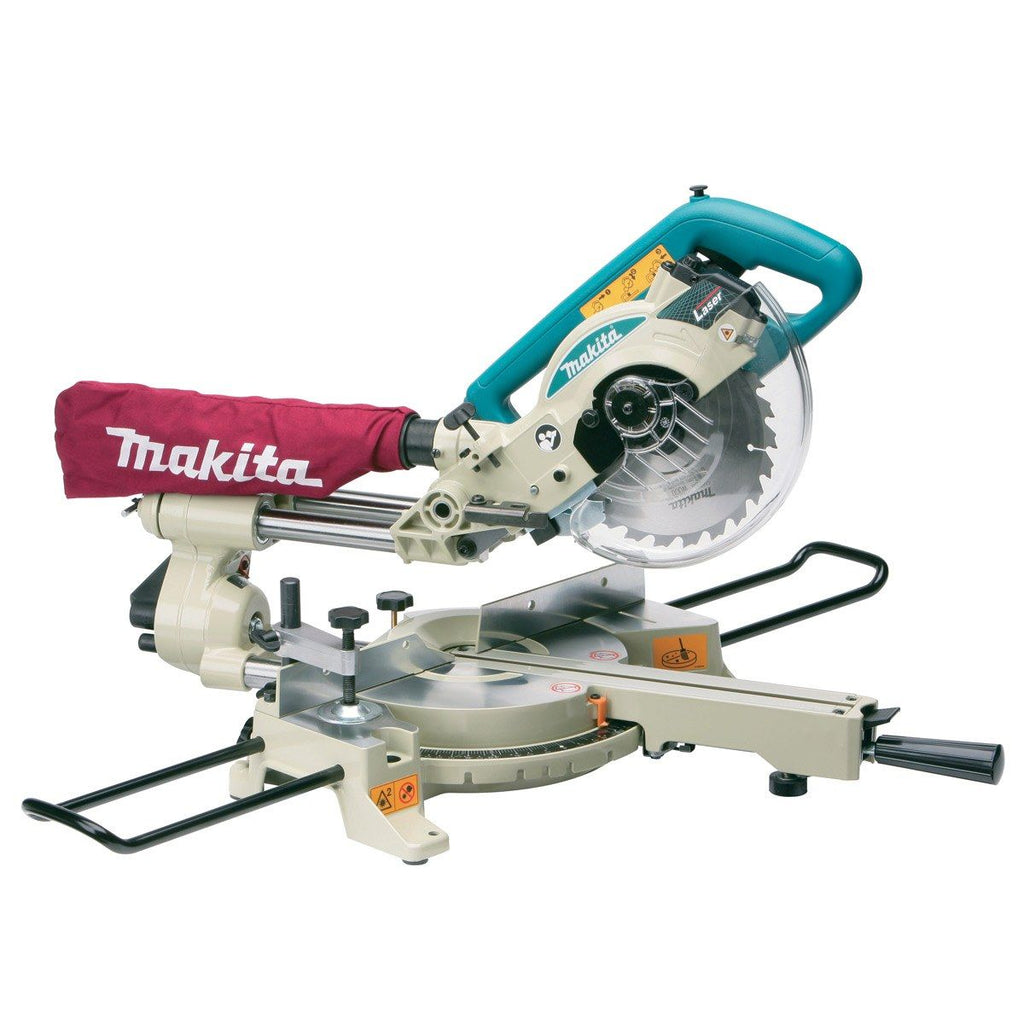

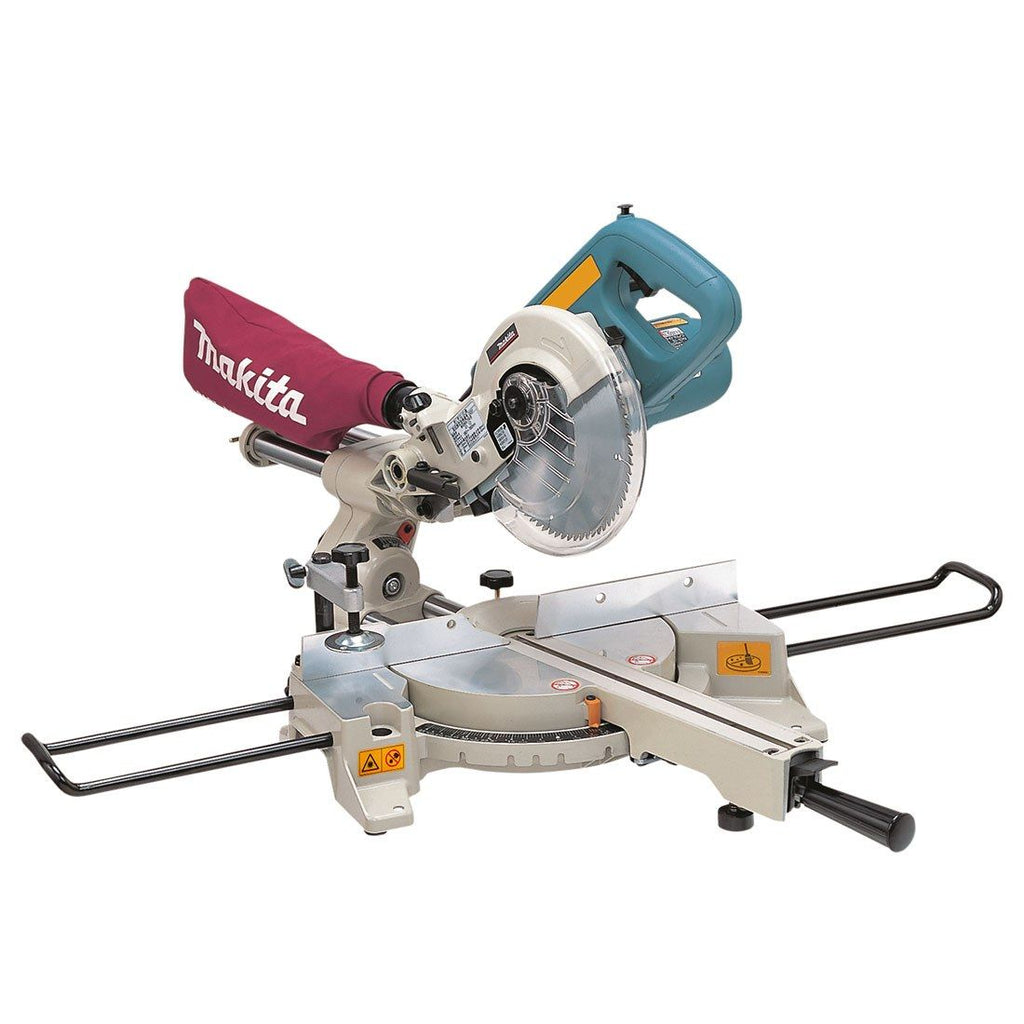

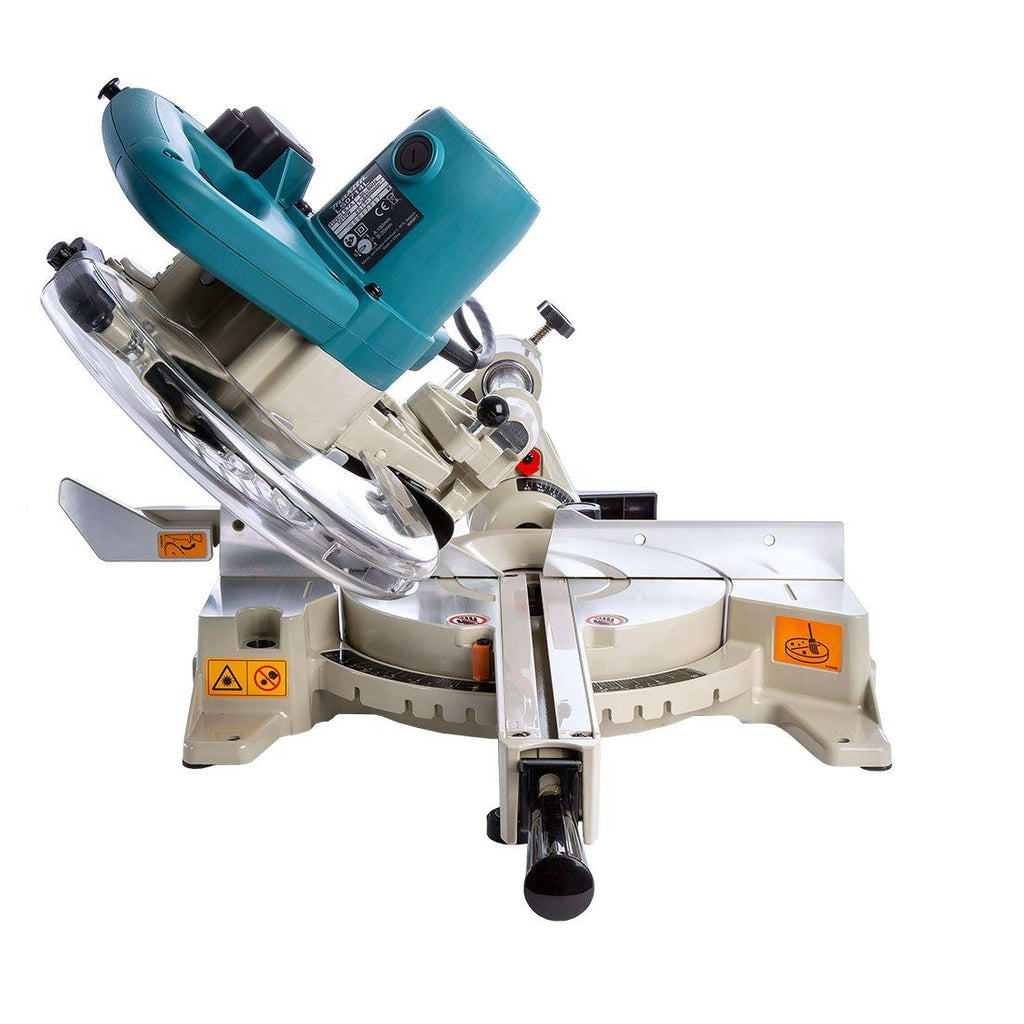

Makita LS0714LN 190mm Slide Compound Mitre Saw with Laser Guide The Makita LS0714L 190mm Slide Compound Mitre Saw with Laser comes complete with a TCT saw blade, dust bag, triangular rule, socket wrench, vertical vice and safety switch button. FEATURES All 4 rails ride on linear ball bearings for extremely smooth and precise operation Can cut over 2" x 8" at 45° Perfect for sofits, dados, skirting, architraves etc Suits the majority of site or workshop applications Trench cutting facility Double sliding mechanism for lighter, more compact design - weighs only 13.5 Kg Conveniently located carrying handle for jobsite portability Powerful 10 AMP motor delivers 6,000 RPM 9 positive stops at 15°, 22.5°, 30°, 45° right and 0° for the most common mitre cuts Smooth easy slide system allows cross cuts up to 11-3/4" wide Large aluminum turn base supports large stock for efficient cutting Laser line allows easy and accurate alignment with ink line even when cutting bevels or decorative timbers SPECIFICATION Voltage: 110v / 240v Laser Type: Red Laser 650 nm, <1 mW (Laser Class 2) Blade Diameter: 190 mm Blade Body Thickness: 1.3 mm - 2.0 mm Bore (Arbor) Diameter: 20 mm Max. Mitre Angle: Left 47° / Right 57° Max. Bevel Angle: Left 45° / Right 5° No Load Speed: 6,000 rpm Dimensions (L x W x H): 670 mm x 430 mm x 458 mm Net Weight: 13.5 kg CUTTING CAPABILITIES (H x W) Mitre Angle Bevel Angle 45° (left) 0° 5° (right) 0° 40 mm x 300 mm 52 mm x 300 mm 40 mm x 300 mm 45 mm x 265 mm (¹) 60 mm x 265 mm (¹) – 45° (left and right) 40 mm x 212 mm 52 mm x 212 mm – 45 mm x 185 mm (²) 60 mm x 185 mm (²) – 57° (right) – 52 mm x 163 mm – – 60 mm x 145 mm (³) – ¹ Max. Cutting capacity when using a wood facing 20 mm thickness² Max. Cutting capacity when using a wood facing 15 mm thickness³ Max. Cutting capacity when using a wood facing 10 mm thickness NOISE & VIBRATION Sound Pressure Level (LpA): 92 dB(A) Sound Power Level (LWA): 101 dB(A) Uncertainty (K): 3 dB(A) Vibration Emission (ah): 2.5 m/s² or less Uncertainty (K): 1.5 m/s² Available In 110v & 240v
